Abhiyant Standard Parts
|

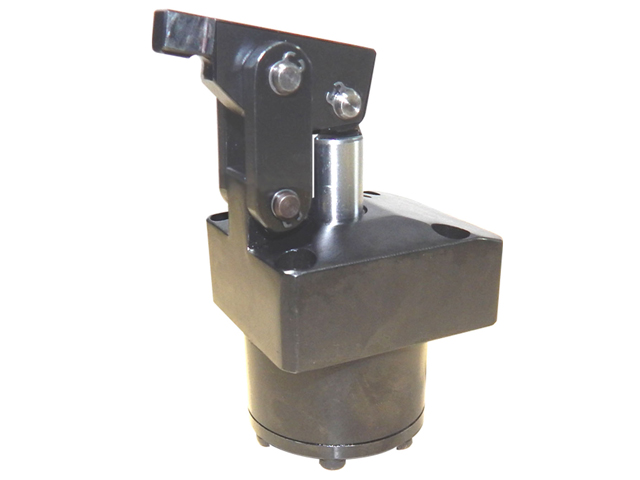

Link Clamp Cylinders
Flange Mounting Type.
Working pressure : From 1 to 7 Mpa.
Cylinder OD : Dia 40 mm, 48 mm, 55 mm & 65 mm.
Full Stroke : 20.5, 23.5, 26, 29.5.

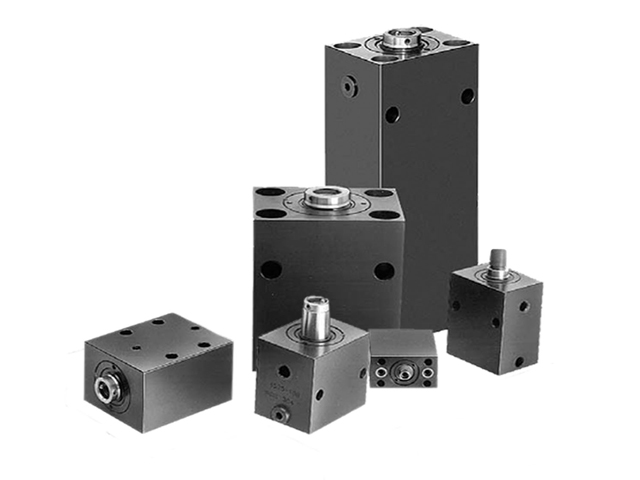

Block Cylinders
Push & Pull Type Cylinders.
Sizes ranging from 1.4, 3.4, 5.4, 8.4 KN force with different strokes.
Female threaded endings for piston.
Pressure range- 1-7 Mpa.
Power Pack
Standard Accessories
Leak-free valves and fittings.
1 Set of hoses.
Pressure switch.
Pressure relief valve.
Level gauge.
Return line filter.

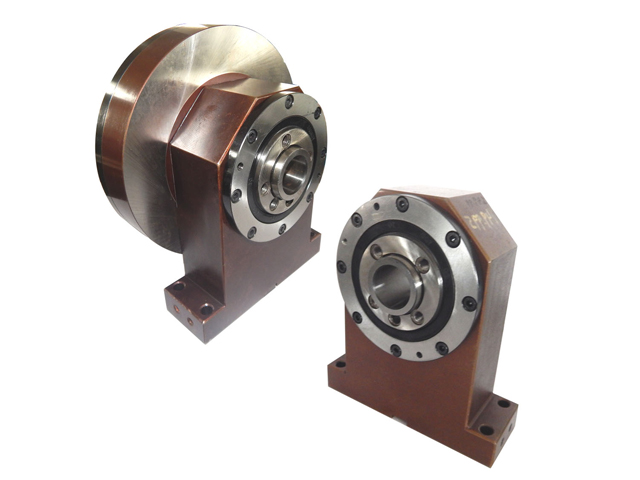

Support Table
Support Spindle for Rotary table.
Face plate size upto Ø250.
Load on rotary table upto 175kg.

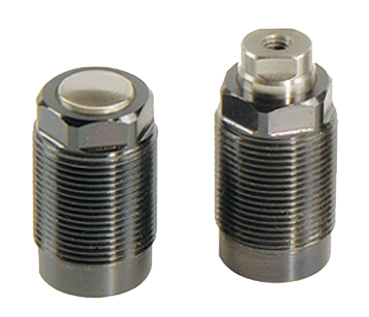

Threaded Body Pusher Cylinder
Manifold Mounting type cylinders.
Standard Range : M22,M30,M36,M45.
Female piston ends.
Force Range : 0.6, 1.6, 2.6, 4.6 KN.
Pressure Range : 1 – 10 Mpa.
